Inverto LNBs menu page - scroll down

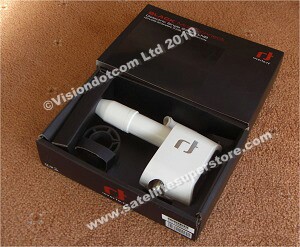

Inverto Black Ultra single LNBs Inverto Black multiconnect narrow feed single LNB Inverto Black Pro c120 flange single LNBs Inverto Black Ultra 40mm clamp LNB



Inverto Multiconnect narrow feed LNB 23mm-40mm clamp LNB



Inverto Black Pro C120 flange LNB
(This LNB fits on a feedhorn)

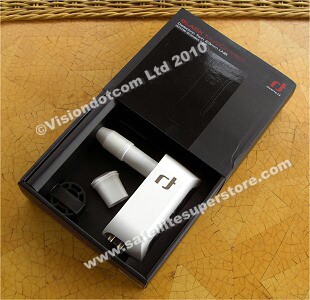

Inverto Black Ultra twin LNBs Inverto Black multiconnect narrow feed twin LNB Twin c120 flange LNBs

Inverto Black Ultra 40mm clamp twin LNB



Inverto Multiconnect narrow feed LNB 23mm-40mm clamp twin LNB



Inverto Black Pro C120 twin LNB
(This LNB fits on a feedhorn)


Inverto Black Ultra Quad LNBs Inverto Black multiconnect narrow feed quad LNB Quad c120 flange LNBs Inverto Black Ultra quad LNB



Inverto Multiconnect narrow feed LNB 23mm-40mm clamp quad LNB




Inverto Black Pro C120 flange quad LNB
(This LNB fits on a feedhorn)

Inverto Black Ultra Quatro LNBs Inverto Black multiconnect narrow feed Quatro LNBs Inverto Black Pro c120 flange  Quad LNBs

Inverto Black Ultra quatro LNB



Inverto narrow feed quatro LNB




Inverto C120 flange Black Pro quatro LNB
(This LNB fits on a feedhorn)


Raven Feehorn with single LNB



Invacom Feehorn with single LNB



universal Feehorn with single LNB


Offset Feehorn with single LNB
Inverto LNBs with Raven feedhorn
Raven feed + single LNB
Raven feed + twin LNB
Raven feed + quad LNB
Raven feed + quatro LNB

Inverto LNBs with Invacom feedhorn
Invacom feed + single LNB
Invacom feed + twin LNB
Invacom feed + quad LNB
Invacom feed + quatro LNB

Inverto LNBs with universal prime focus feedhorn
Universal feed + single LNB
Universal feed + twin LNB
Universal feed + quad LNB
Universal feed + quatro LNB

Inverto LNBs with universal offset feedhorn
Universal feed + single LNB
Universal feed + twin LNB
Universal feed + quad LNB
Universal feed + quatro LNB
6 degree monoblocks -
Inverto White Tech single
Inverto Black Pro twin
Inverto Black Pro quad

4.3 degree monoblocks -
Inverto Black Pro single
Titanium single
Duo quad

3 degree monoblocks -
Inverto Black Pro single
Technomate single
Inverto Black Pro twin

Brackets -
Universal bracket
Universal LNB kit
Triax bracket Triax LNB kit
Triax 20 degree kit

Inverto Mulitconnect system kits Inverto Mulitconnect system kits Inverto Mulitconnect system kits. They fit ANY dish.

Inverto 3 satellite LNB kit
Inverto 4 satellite LNB kit

3 or 4 LNB, 20 degree look angle dish kits -

3 sat 85cm Easy Fit dish kit
3 sat 85cm transparent dish

3 satellite 1.0m dish kit
4 satellite 1.0m dish kit

3 satellite 90cm heavy duty fibre glass dish kit
4 satellite 90cm heavy duty fibre glass dish kit

3 satellite 85cm multiswitch dish kits
4 satellite 1.0m multiswitch dish kits

6 degree monoblocks -
Inverto White Tech single
Inverto Black Pro twin
Inverto Black Pro quad

4.3 degree monoblocks -
Inverto Black Pro single
Titanium single
Duo quad

3 degree monoblocks -
Inverto Black Pro single
Technomate single
Inverto Black Pro twin


Click here for every LNB and feedhorn on one long page.



What is an LNB ?

An LNB is the box of electronics on the end of the dish boom arm. It acts like a aerial masthead
amplifier. The signal (microwaves) reflect off the dish and into the feedhorn to the LNB.
Here it is amplified and the frequency is lowered. The lower the noise figure the better.
i.e. in simple terms, it pulls in the signal better. The signal is then sent down the coaxial cable to the
satellite receiver. Quality digital cable should be used. (not CT100 or RG6)
See our Satellite Cable for good digital cable.
A universal LNB covers the KU band from 10700 to 12750Ghz with LO frequencies of 9750 and 10600.
There are Single LNBs, Twin LNBs, Quad LNBs, Octo LNBs and Quatro LNBs. Single have one output,
twin - two outputs, quad - 4 outputs and Octo - 8 outputs. All outputs are the same and are equivalent to
a single LNB. A twin LNB could be used for two single tuner satellite receivers or a twin tuner satellite receiver
Quatro LNBs have 4 outputs and they are all different. Quatro LNBs can only be used with multiswitches.
There are also 40mm clamp LNBs and C120 LNBs. This refers to the way they fit on a dish. A 40mm LNB has an
integral offset feedhorn and fits to the most common types of offset dishes.
C120 flange LNBs fit on a separate feedhorn and could be used on either offset or prime focus dishes.
They are usually used on specialist high quality dishes.
Both 40mm and C120 LNBs could have single, twin, quad or quatro outputs.
At the moment only 40mm LNBs have octo outputs.
Using a quatro LNB and a multiswitch it is posible to have many more outputs. Even 32 outputs or larger.
A Sky mini dish LNB uses a fixing that is none standard and a tongue fits into the end of the boom arm
To find out more about LNBs and how the perform go to Getting More Signal.



Prime Focus and Offset Dishes.

Prime Focus Dish Prime Focus Dish

A 1.2m prime focus dish is shown above.
This type of dish is circular NOT oval. It has 3 feed support arms (some use 4 arms) and the 3 arms
converge in the centre. Each arm is 120 degrees apart. The feedhorn uses concentric scalar rings.
The concentric scalar rings reduce noise and improve signal to noise ratio with prime focus dishes.
An offset dish (See below) is oval and is higher than it is wide (some are wider than they are high).
They use either one feed support arm (at the bottom of the dish - see bottom left hand picture) or 3
feed support arms (again all in the bottom 1/2 of the dish - see bottom right hand picture).
Many offset dishes use a standard 40mm clamp LNB but some more expensive specialised offset dishes
also use a feedhorn If a feedhorn is used, a c120 flange LNB is bolted to it.

Offset dish with one support arm Offset dish with three support arm

Prime Focus Dish

As a general rule the two types of dishes are simply two ways of doing the same job, however, an offset
dish, if well engineered, usually has significantly more gain than the prime focus dish. It is never
really that simple. It is true that petalised offset dishes usually have poor gain but a one-piece
well engineered prime focus dish can be better than a poorly engineered offset dish and some very
good prime focus dishes can have the same gain as a good offset dish of the same size.
As usual you get what you pay for. Cheap prime focus petalised dishes are to be
avoided and we don't sell them.
Prime focus dishes probably look better than offset dishes as they point upwards.

Update Feb. 2011 -
See our new 1.4m prime focus dishes at fixed 1.4m prime focus dish and motorised 1.4m prime focus dish
These prime focus dishes wll soon be available with C Band LNB options using the products on this page.

Primesat 1.4m Dish Primesat 1.4m Dish
